WHAT DO YOU NEED TO CUT?
| Verdi BASIC | Verdi TWIN | Wincut | Inblade | Inblade PRO | Inbest BASIC | Inbest TWIN | Inbest PRO | ||
|---|---|---|---|---|---|---|---|---|---|
| Download table |  |
 |
 |
 |
 |
 |
 |
 |
|
| CUTTING SYSTEM | SAW | SAW | BLADE | INTERCHAN. HEADS | INTERCHANGEABLE HEADS | INTERCHANGEABLE HEADS | |||
| RIGIDS | |||||||||
| PVC Foamboard | 20 mm | 20 mm | 5 mm | 5 mm | 13 mm | 5 mm / 10 mm** | 10 mm | ||
| Dibond® | 12 mm | 12 mm | - | - | 4 mm | - | - | - | |
| ChromaLuxe® | 3 mm | 3 mm | - | - | 1 mm | - | - | - | |
| Plexiglas® | 12 mm | 12 mm | - | - | 6 mm* / ♦ | 6 mm* / **/ ♦ | 4 mm* / ♦ | 4 mm* / ♦ | 4 mm* / ♦ |
| MDF / Wood | 20 mm | 20 mm | - | - | 4 mm | - | - | - | |
| Glass | - | - | 6 mm* / ♦ | 6 mm ♦ | 6 mm* / ♦ | - | - | - | |
| SEMI-RIGIDS | |||||||||
| Foamboard | - | - | 20 mm | 20 mm | 13 mm / 20 mm* | 13 mm / 20 mm* | 13 mm / 20 mm* | 13 mm / 20 mm* | |
| Cardboard | - | - | 20 mm | 20 mm | 13 mm / 20 mm* | 13 mm / 20 mm* | 13 mm / 20 mm* | 13 mm / 20 mm* | |
| Re-board® | - | 20 mm | 13 mm | 13 mm / 20 mm* | 13 mm / 20 mm* | 13 mm / 20 mm* | 13 mm / 20 mm* | ||
| Corrugated plastic | 20 mm | 20 mm | 5 mm | 5 mm | 13 mm | 13 mm | 13 mm | 13 mm | |
| Passepartout | - | - | Yes | Yes | Yes | Yes | Yes | Yes | |
| FLEXIBLES | |||||||||
| Fabric / Textiles | - | - | - | Yes | Yes | Yes | |||
| Plastic film | - | - | - | Yes | Yes | Yes | |||
| Banner materials | - | - | - | Yes | Yes | Yes | |||
| Paper | - | - | - | Yes | Yes | Yes | |||
| Vinyl | - | - | - | Yes | Yes | Yes | |||
| Magnetic sheets | - | - | - | Yes | Yes | Yes | |||
| V-GROOVE | |||||||||
| Dibond® | - | - | 4 mm* | - | - | - | |||
| Re-board® | - | - | 20 mm* | - | - | - | |||
| Foamboard | - | - | 13 mm* | - | - | - | |||
| MÁX. CUT | |||||||||
| All materials | 305 cm high | 305 cm high | 250 cm high | 305 cm high | 320 cm wide | 320 cm wide | 320 cm wide | ||
|
*Optional accessory required. **Possible but not for daily use ♦ Score and snap. |
|||||||||
VERDI TWIN Saw & Cutter, 2 in 1
The Verdi Twin vertical cutter is designed to cut any type of rigid and semi-rigid material up to a cutting height of 305 cm and a maximum thickness of 20 mm. Its unique and complete features guarantee to cover quickly, accurately and smoothly any cutting requirement, from low volume needs to high production ones.

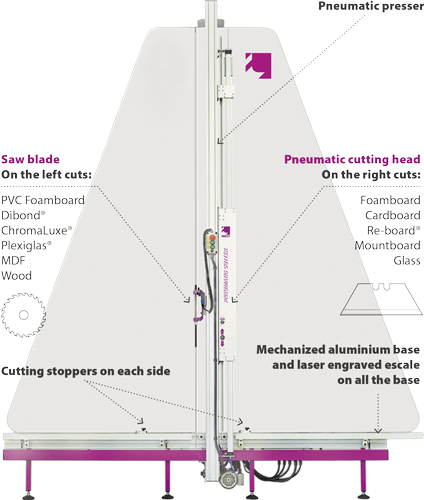

The Verdi Twin is equipped with two cutting systems ready to use: a saw blade on the left to cut rigid materials and a pneumatic knife on the right for semi-rigid ones. The movement of the saw blade is guided through a robust guide system that guarantees a perfect straight cut all along the way and the powerful engine guarantees an accurate result. The pneumatic movement of the knife offers an easy-to-use and fast solution to cut any semi-rigid material.
The Verdi Twin is manufactured in 5 different sizes: The saw blade is manually operated in models 122 cm (48”) and 157 cm (61.8”); whereas in models 210 cm (82.7”), 244 cm (96.1”) and 305 cm (120.1”) the movement is automatically done through a belt-driven mechanism.
Materials cut by the Verdi Twin: PVC Foamboard, Aluminium composite / Dibond®, Aluminium sheets / ChromaLuxe®, Acrylics / Plexiglas®, MDF / Wood, Glass, Foamboard, Cardboard, Honeycomb / Reboard®, Corrugated plastic or Passepartout.
All models come equipped with a powerful 2 HP dust collector Ref. 02 12 06 to guarantee a dust-free operation.
Discover here the Verdi Basic, designed specifically to cut rigid materials.
Cutting features
| RIGIDS | Saw | Blade |
| PVC Foamboard | 20 mm | 5 mm |
| Aluminium composite / Dibond® | 12 mm | - |
| Aluminium sheets / ChromaLuxe® | 3 mm | - |
| Acrylics / Plexiglas® | 12 mm | - |
| MDF / Wood | 20 mm | - |
| Glass | 6 mm * / ♦ | |
| SEMI-RIGIDS | Saw | Blade |
| Foamboard | - | 20 mm |
| Cardboard | - | 20 mm |
| Honeycomb / Reboard® | 20 mm | |
| Corrugated plastic | 20 mm | 5 mm |
| Passepartout | - | Yes |
| * Optional accessory required. Only for Verdi 122 and 157 cm. ♦ Score and snap. | ||
Why is it different?

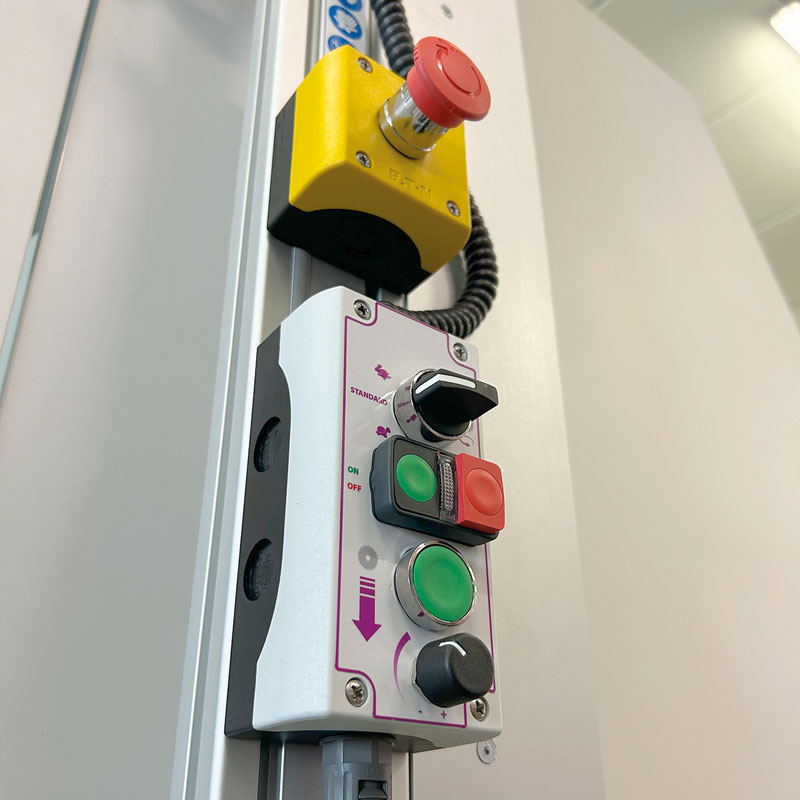

ADVANCEMENT & ROTATION SPEED REGULATOR
ADJUSTABLE LIMIT SWITCH
POWERFUL 1.5 HP ENGINE
EASY-TO-USE PNEUMATIC SWITCH
PNEUMATIC CLAMPING SYSTEM
RELIABILITY IN USE
Other features
• Saw blade automatically returns to the upper position after each cut.
• See-through safety blade guard and cutting disc protector.
• Two measurement stops to accurately set up the desired measure to get.
• Laser system available as an accessory, useful to indicate the cutting line.
• All models provided with adjustable legs system.
Do you want to see how it works?
Materials
PVC Foamboard, Aluminium composite / Dibond®, Aluminium sheets / ChromaLuxe®, Acrylics / Plexiglas®, MDF / Wood, Glass, Foamboard, Cardboard, Honeycomb / Reboard®, Corrugated plastic or Passepartout.
